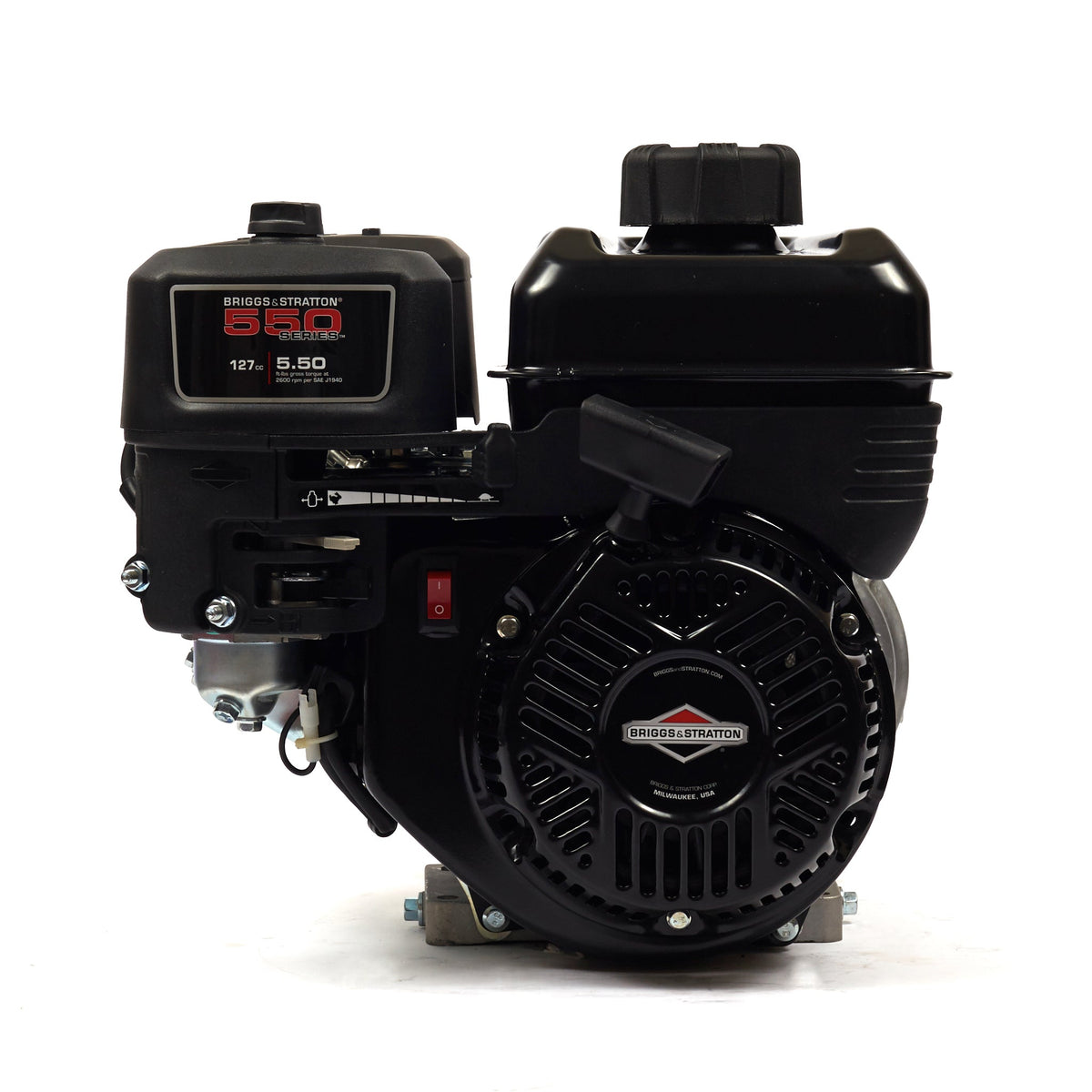

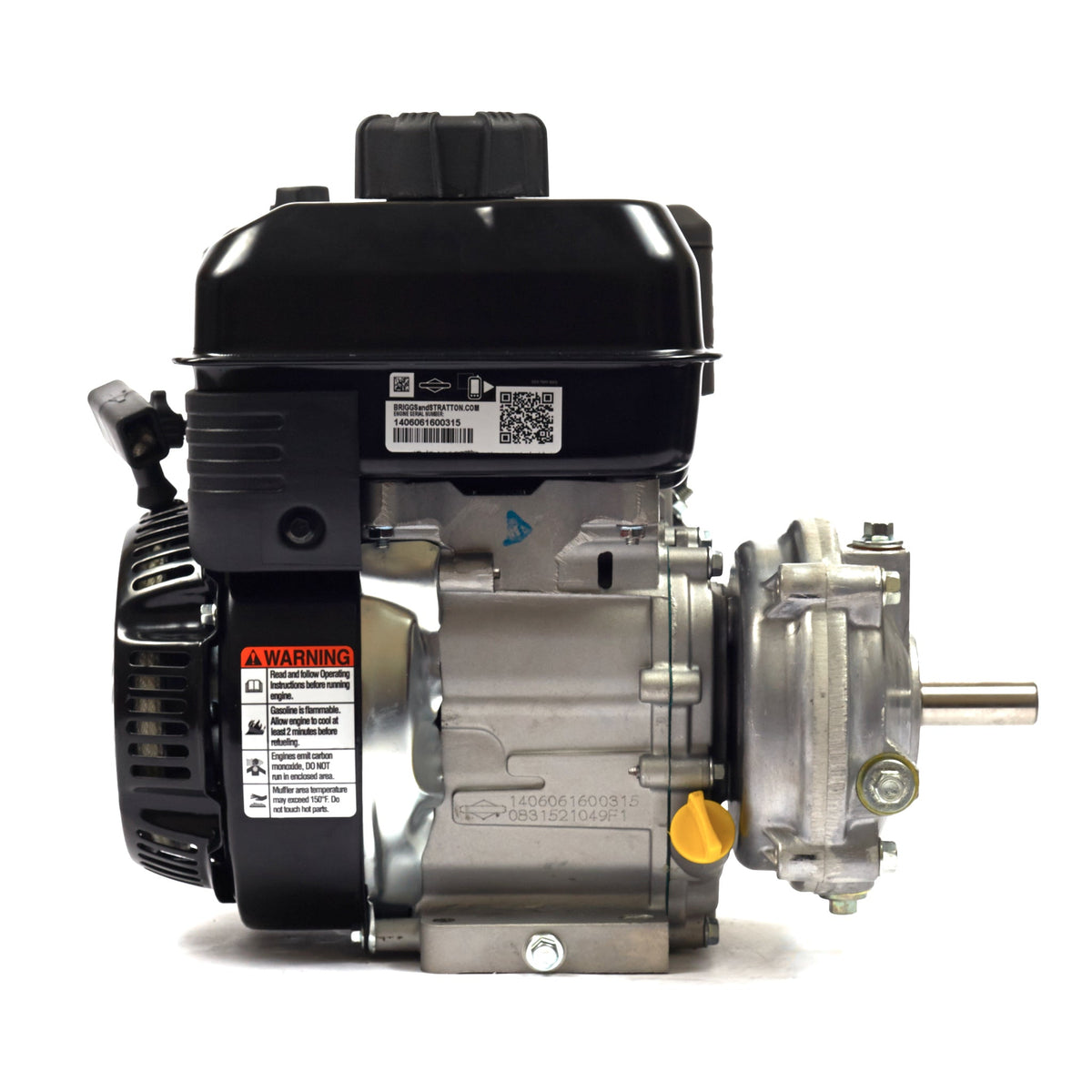

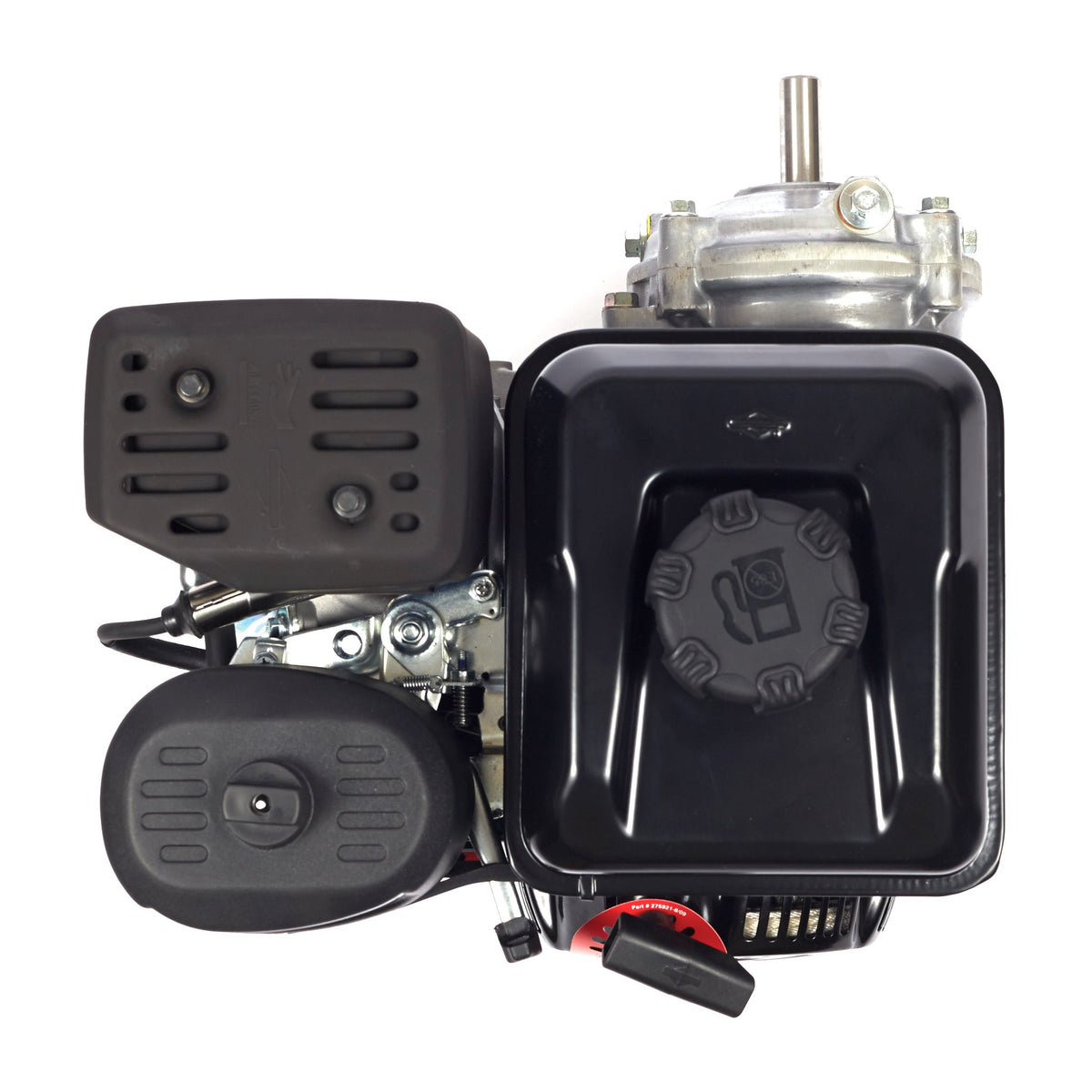

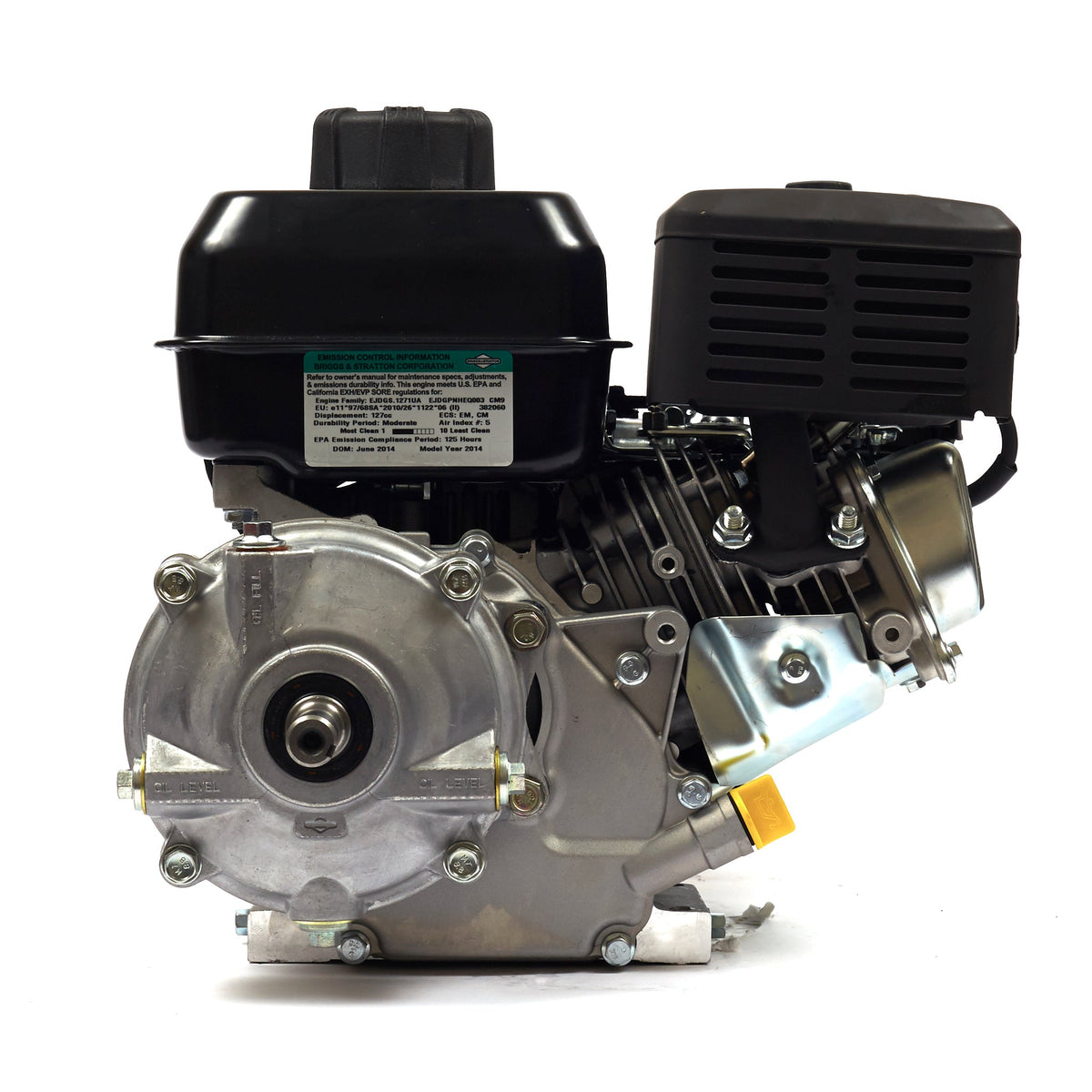

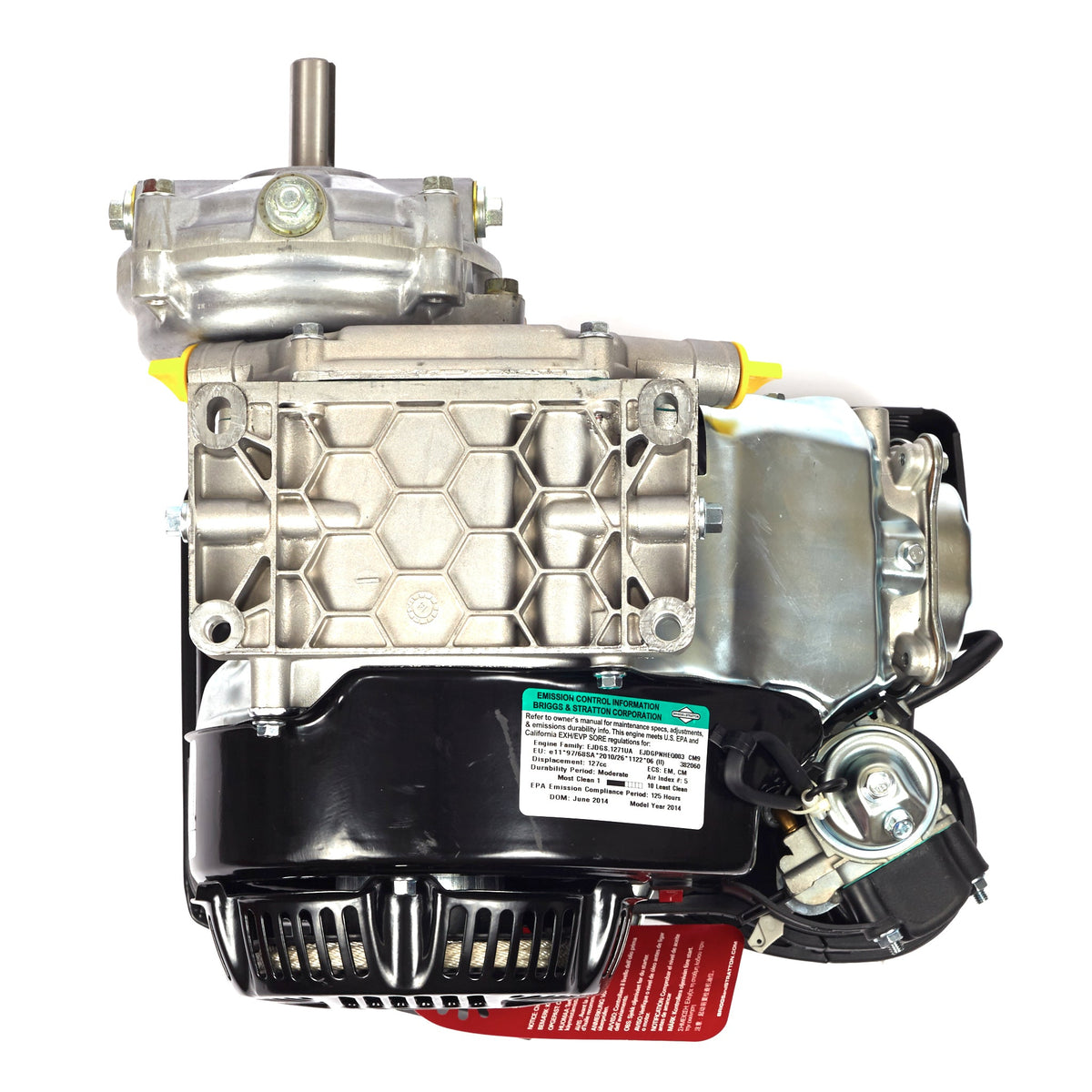

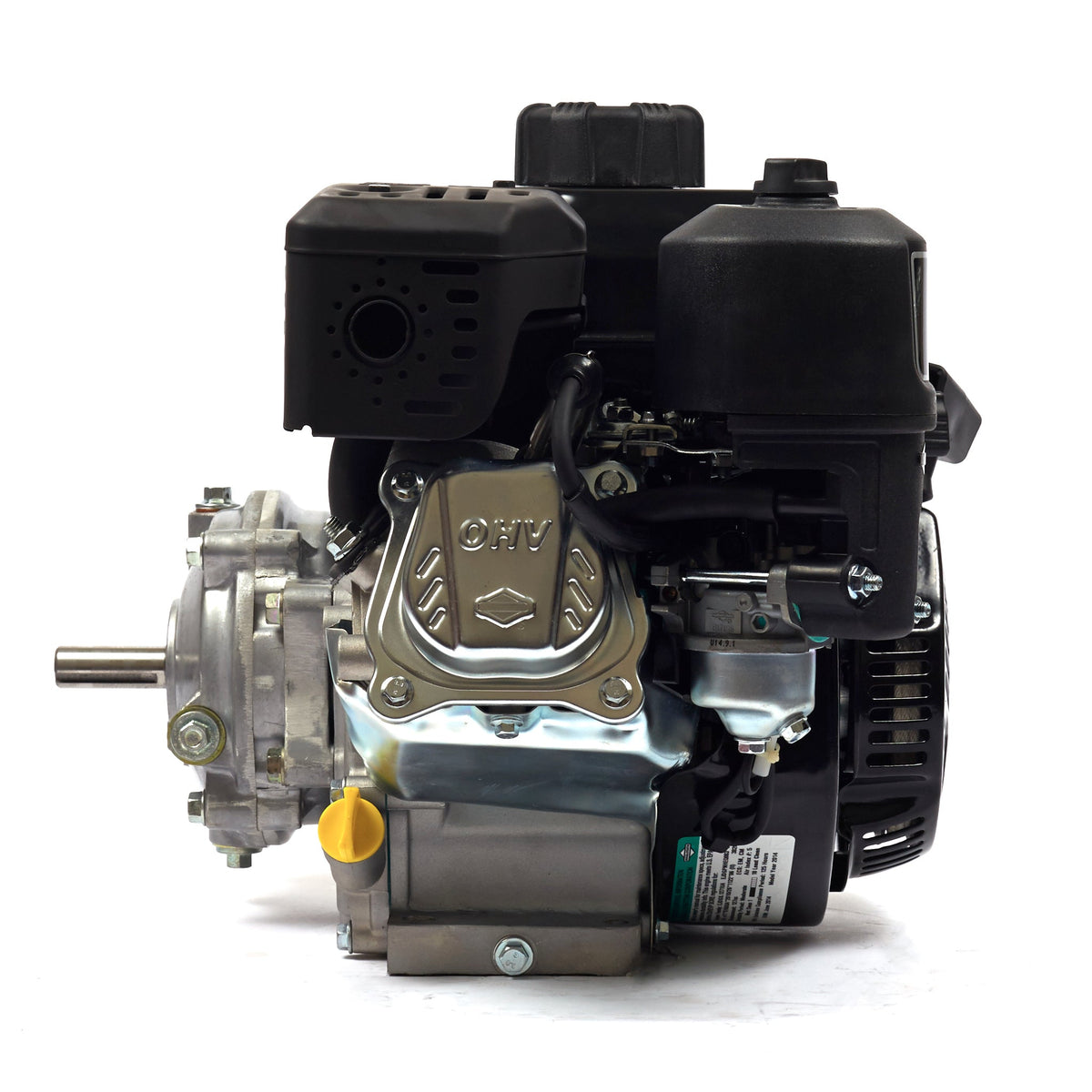

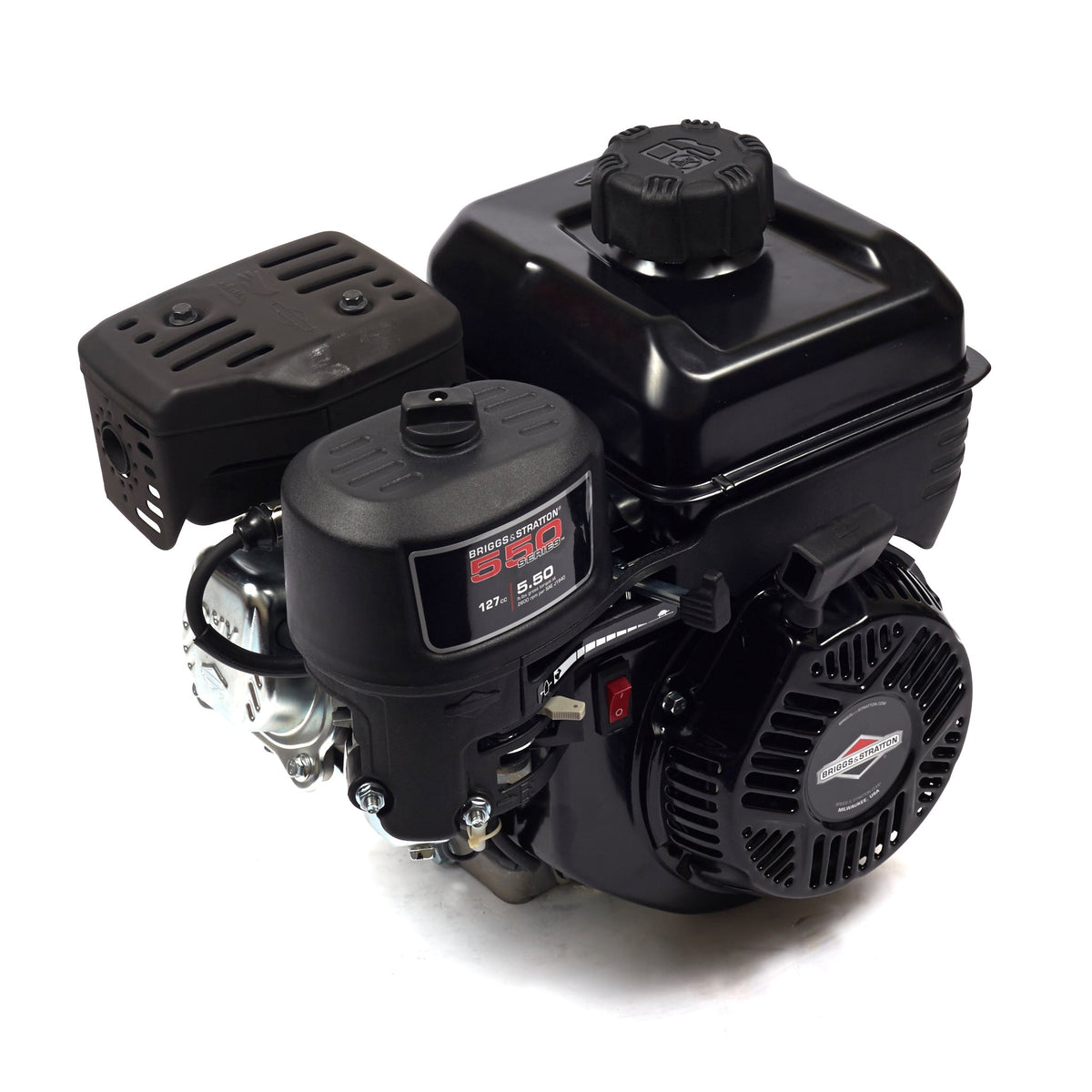

Briggs and Stratton 83152-1049-F1 XR Series™ 3.5 HP 127cc Horizontal Shaft Engine

MPN: BS83152-1049-F1

$735.99

Find Parts for this Engine

This genuine 127cc Briggs and Stratton single cylinder engine offers dependable power for your equipment needs. With a power rating of 5.50 gross torque, this engine features a premium pleated paper air filtration system, recoil starter, and maintenance-free Magnetron electronic ignition. With a manufacturer limited warranty of 2 years consumer use / 1 year commercial use, Briggs and Stratton provides power that you can trust. This engine includes a Dura-Bore cast iron cylinder sleeve for extended life. This engine includes an installed muffler. This engine includes a fuel tank.

Dura-Bore® cast iron cylinder sleeve for extended life
PTO ball bearing
Float feed carburetor delivers consistent one pull starts
Maxi-Clean™ automotive-type pleated paper air filter provides superior protection for long engine life
Fuel Shut Off
Mechanical Governor

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Information for BS83152-1049-F1 Engine

Engine Series: 550 Series
Gross HP/Torque:* 5.5
Max RPM: 3600
Engine Displacement: 127 cc
Crankshaft Type: Gear Reduction
Crankshaft Rotations from PTO: Counter Clockwise
Crankshaft Diameter (in.): 3/4"
Crankshaft Length (in.): 1-13/16"
Crankshaft Keyway (in.): 3/16"
Ignition System: Electronic
Limited Warranty - Consumer: 2 years
Limited Warranty - Commercial: 1 year

*Briggs & Stratton uses Gross Torque (GT) to measure power on smaller engines and Gross Horsepower (GHP) for larger engines.

Find Parts With Part Diagrams

We get it, fixing outdoor power equipment can be hard, but finding the right part is easier with our Part Lookup Tool.

Go to Parts Lookup Tool
